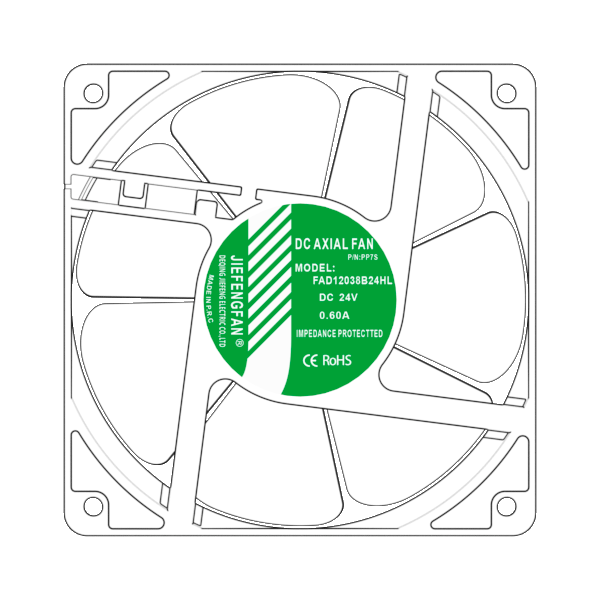

FAD12038B2HL-PP7S-C
FAD12038B2HL-PP7S-C DC Axial Fan industrial cooling fan for electrical cabinets, automation equipment, power supplies, servers, ventilation and thermal management applic…
Reliable Thermal Management Technology
Dimensional Drawing: Unit: mm Technical Specifications: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART NO. VDC VDC AMP Watt RPM CFM InH2O dBA FAD12038×1LL 12 8.5～13.5 0.45 5.40 2500 89.58 0.21 40.0 FAD12038×1LML 12 8.5～13.5 1.45 17.40 3500 128.40 0.41 49.0 FAD12038×1ML 12 8.5～13.5 2.25 27.00 4500 164.09 0.66 55.8 FAD12038×1LHL 12 8.5～13.5 3.00 36.00 5500 198.60 0.95 61.3 FAD12038×2LL 24 18～26.5 0.23 5.40 2500 89.58 0.21 40.0 FAD12038×2LML 24 18～26.5 0.73 17.40 3500 128.40 0.41 49.0 FAD12038×2ML 24 18～26.5 1.13 27.00 4500 164.09 0.66 55.8 FAD12038×2LHL 24 18～26.5 1.50 36.00 5500 198.60 0.95 61.3 FAD12038×4LL 48 36～54 0.08 3.60 2500 89.58 0.21 40.0 FAD12038×4LML 48 36～54 0.23 10.80 3500 128.40 0.41 49.0 FAD12038×4ML 48 36～54 0.38 18.00 4500 164.09 0.66 55.8 FAD12038×4LHL 48 36～54 0.50 24.00 5500 198.60 0.95 61.3 X is a variable value that represents different drive types.
Product Parameters
- Product Type
- Axial Fan
- Brand
- JIEFENG FANS
- Frame Type
- Standard Plastic Frame
- Housing Material
- PBT+28%GF
- Impeller Material
- PBT 28% Glass Fiber Reinforced
- Blade Quantity
- 7
- Overall Size
- 119.7*119.7*37.5 MM
- Mounting Size
- 105.0*105.0 MM
- Mounting Hole Diameter
- Φ4.3
- Ventilation Opening Size
- φ115.5 MM
- Motor Type
- Brushless Motor
- Insulation Class
- B Class
- Drive Type
- Sleeve /Ball Bearing
- Power Type
- DC / Direct Current
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 5.4/24.0 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/5500 RPM
- Air Flow
- 89.58/198.60 CFM
- Air Pressure
- 0.21/0.95 inch-H₂O
- Noise Level
- 61.3 dBA
- Protection Grade
- IP43
- Life Span
- 30000/50000 H
- Weight
- 245.0 g
- Connection Method
- Lead-out Wire/Wiring Terminal
- Safety Certification
- CE/ROHS
- Custom Function
- Soft Start/Locked Rotor/RD/FG/PWM
