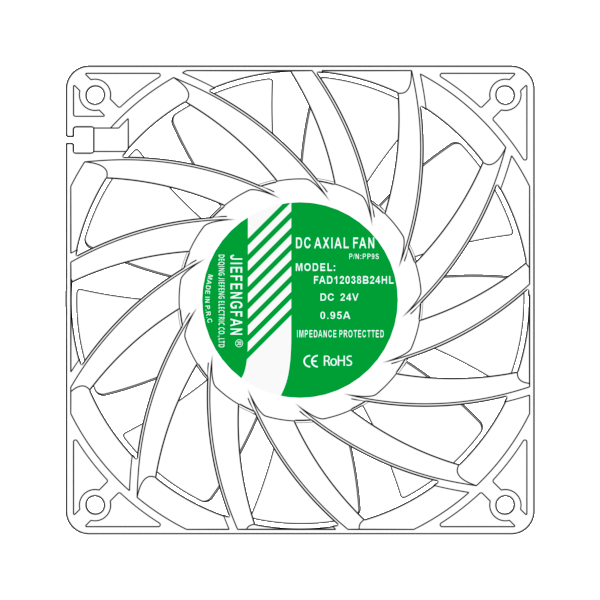

FAD12038B2HL-PP9S-E

FAD12038B2HL-PP9S-E

Product Parameters:

Brand：
JIEFENG FANS
Frame Type：
High-pressure Plastic Frame
Housing Material：
PBT+28%GF
Impeller Material：
PBT 28% Glass Fiber Reinforced
Number of Blades：
9
Overall Size：
120.2*120.2*37.6 MM
Mounting Size：
105.0*105.0 MM
Mounting Hole Diameter：
Φ4.3
Ventilation Opening Size：
φ117.5 MM
Motor Type：
Brushless Motor
Insulation Class：
B Class
Drive Type：
Ball Bearing Copper Center Tube
Power Type：
DC / Direct Current
Rated Voltage：
12V/24V/48V
Rated Power：
4.2/36.0 W
Working Temperature：
-30℃~+70℃
Working Humidity：
30%~70%RH
Speed：
2500/5500 RPM
Air Flow：
108.28/248.46 CFM
Static Pressure：
0.28/1.31 inch-H₂O
Noise Level：
71.9 dBA
Protection Grade：
IP43
Service Life：
50000 H
Weight：
400.0 g
Connection Method：
Lead-out Wire/Wiring Terminal
Safety Certification：
CE/ROHS
Custom Function：
Soft Start/Locked Rotor/RD/FG/PWM

Dimensional Drawing:

Unit: mm

Technical Specifications:

Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise
PART NO.  VDC  VDC AMP Watt RPM CFM InH2O dBA
FAD12038×1LL 12 8.5～13.5 0.35  4.20  2500  108.28  0.28  52.4
FAD12038×1LML 12 8.5～13.5 1.38  16.60  4500  157.40  0.56  57.6
FAD12038×1ML 12 8.5～13.5 2.40  28.80  5000  200.78  0.90  66.7
FAD12038×1LHL 12 8.5～13.5 3.00  36.00  5500  248.46  1.31  71.9
FAD12038×2LL 24 18～26.5 0.18  4.20  2500  108.28  0.28  52.4
FAD12038×2LML 24 18～26.5 0.70  16.60  4500  157.40  0.56  57.6
FAD12038×2ML 24 18～26.5 1.20  28.80  5000  200.78  0.90  66.7
FAD12038×2LHL 24 18～26.5 1.50  36.00  5500  248.46  1.31  71.9
FAD12038×4LL 48 36～54 0.09  4.20  2500  108.28  0.28  52.4
FAD12038×4LML 48 36～54 0.35  16.60  4500  157.40  0.56  57.6
FAD12038×4ML 48 36～54 0.60  28.80  5000  200.78  0.90  66.7
FAD12038×4LHL 48 36～54 0.75  36.00  5500  248.46  1.31  71.9
X is a variable value that represents different drive types.
