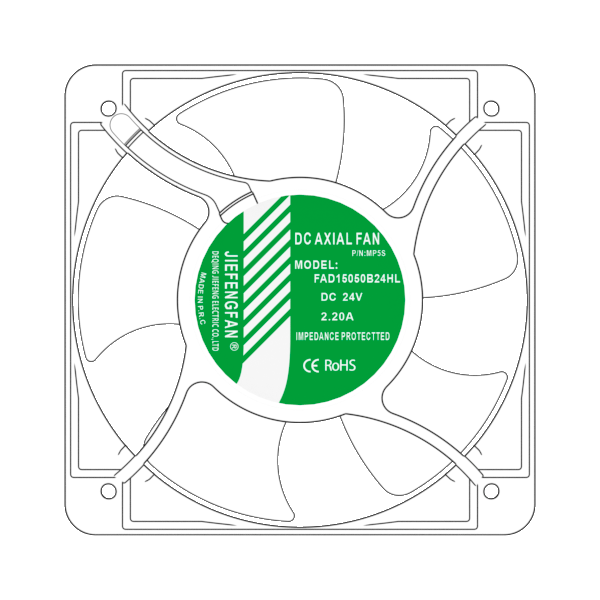

FAD15050B2HL-MP5S-A
FAD15050B2HL-MP5S-A DC Axial Fan industrial cooling fan for electrical cabinets, automation equipment, power supplies, servers, ventilation and thermal management applic…
Reliable Thermal Management Technology
Dimensional Drawing: Unit: mm Technical Specifications: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART NO. VDC VDC AMP Watt RPM CFM InH2O dBA FAD15050×1LL 12 8.5～13.5 0.80 9.60 2500 172.21 0.43 56.1 FAD15050×1LML 12 8.5～13.5 2.40 28.80 3000 209.40 0.60 58.3 FAD15050×1ML 12 8.5～13.5 4.42 53.00 3500 248.09 0.84 62.5 FAD15050×1LHL 12 8.5～13.5 6.00 72.00 4000 283.00 1.08 65.5 FAD15050×1MHL 12 8.5～13.5 7.60 91.20 4500 325.57 1.48 68.2 FAD15050×1HL 12 8.5～13.5 10.00 120.00 5000 361.69 1.79 71.4 FAD15050×2LL 24 18～26.5 0.40 9.60 2500 172.21 0.43 56.1 FAD15050×2LML 24 18～26.5 1.20 28.80 3000 209.40 0.60 58.3 FAD15050×2ML 24 18～26.5 2.21 53.00 3500 248.09 0.84 62.5 FAD15050×2LHL 24 18～26.5 3.00 72.00 4000 283.00 1.08 65.5 FAD15050×2MHL 24 18～26.5 3.80 91.20 4500 325.57 1.48 68.2 FAD15050×2HL 24 18～26.5 5.00 120.00 5000 361.69 1.79 71.4 FAD15050×4LL 48 36～54 0.20 9.60 2500 172.21 0.43 56.1 FAD15050×4LML 48 36～54 0.60 28.80 3000 209.40 0.60 58.3 FAD15050×4ML 48 36～54 1.10 53.00 3500 248.09 0.84 62.5 FAD15050×4LHL 48 36～54 1.50 72.00 4000 283.00 1.08 65.5 FAD15050×4MHL 48 36～54 1.90 91.20 4500 325.57 1.48 68.2 FAD15050×4HL 48 36～54 2.50 120.00 5000 361.69 1.79 71.4 X is a variable value that represents different drive types.
Product Parameters
- Product Type
- Axial Fan
- Brand
- JIEFENG FANS
- Frame Type
- Standard Aluminum Frame
- Housing Material
- ADC/12
- Surface Treatment
- Powder Coating/E-Coating
- Impeller Material
- PBT 28% Glass Fiber Reinforced
- Blade Quantity
- 5
- Overall Size
- 150.3*150.3*51.5 MM
- Mounting Size
- 122.0*122.0 MM
- Mounting Hole Diameter
- M5.0
- Ventilation Opening Size
- φ146.0 MM
- Motor Type
- Brushless Motor
- Insulation Class
- B Class
- Drive Type
- Ball Bearing
- Power Type
- DC / Direct Current
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 9.6/120.0 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2500/5000 RPM
- Air Flow
- 172.21/361.69 CFM
- Air Pressure
- 0.43/1.79 inch-H₂O
- Noise Level
- 71.4 dBA
- Protection Grade
- IP43
- Life Span
- 50000 H
- Weight
- 540.0 g
- Connection Method
- Lead-out Wire/Wiring Terminal
- Safety Certification
- CE/ROHS
- Custom Function
- Soft Start/Locked Rotor/RD/FG/PWM
