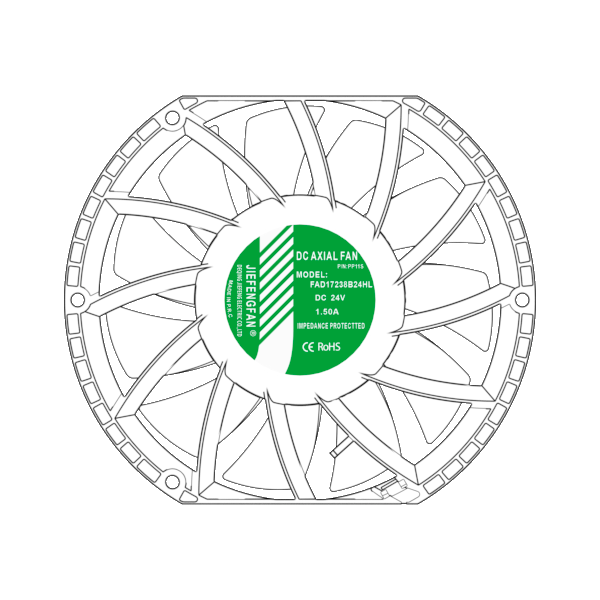

FAD17238B2HL-PP11S
FAD17238B2HL-PP11S DC Axial Fan industrial cooling fan for electrical cabinets, automation equipment, power supplies, servers, ventilation and thermal management applica…
Reliable Thermal Management Technology
Dimensional Drawing: Unit: mm Technical Specifications: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART NO. VDC VDC AMP Watt RPM CFM InH2O dBA FAD17238×1LL 12 8.5～13.5 1.40 16.80 2000 178.63 0.33 46.0 FAD17238×1ML 12 8.5～13.5 2.50 30.00 3000 258.70 0.68 55.0 FAD17238×1HL 12 8.5～13.5 3.20 38.40 3600 330.50 0.98 64.0 FAD17238×2LL 24 18～26.5 0.70 16.80 2000 178.63 0.33 46.0 FAD17238×2ML 24 18～26.5 1.25 30.00 3000 258.70 0.68 55.0 FAD17238×2HL 24 18～26.5 1.60 38.40 3600 330.50 0.98 64.0 FAD17238×4LL 48 36～54 0.35 16.80 2000 178.63 0.33 46.0 FAD17238×4ML 48 36～54 0.63 30.00 3000 258.70 0.68 55.0 FAD17238×4HL 48 36～54 0.80 38.40 3600 330.50 0.98 64.0 X is a variable value that represents different drive types.
Product Parameters
- Product Type
- Axial Fan
- Brand
- JIEFENG FANS
- Frame Type
- High-pressure Plastic Frame
- Housing Material
- PBT+28%GF
- Impeller Material
- PBT 28% Glass Fiber Reinforced
- Blade Quantity
- 11
- Overall Size
- 172.3*149.5*37.7 MM
- Mounting Size
- 162.0*162.0 MM
- Mounting Hole Diameter
- Φ4.3
- Ventilation Opening Size
- φ146.0 MM
- Motor Type
- Brushless Motor
- Insulation Class
- B Class
- Drive Type
- Ball Bearing Copper Center Tube
- Power Type
- DC / Direct Current
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 16.8/38.4 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 2000/3600 RPM
- Air Flow
- 178.63/330.5 CFM
- Air Pressure
- 0.33/0.98 inch-H₂O
- Noise Level
- 64.0 dBA
- Protection Grade
- IP43
- Life Span
- 50000 H
- Weight
- 500.0 g
- Connection Method
- Lead-out Wire/Wiring Terminal
- Safety Certification
- CE/ROHS
- Custom Function
- Soft Start/Locked Rotor/RD/FG/PWM
