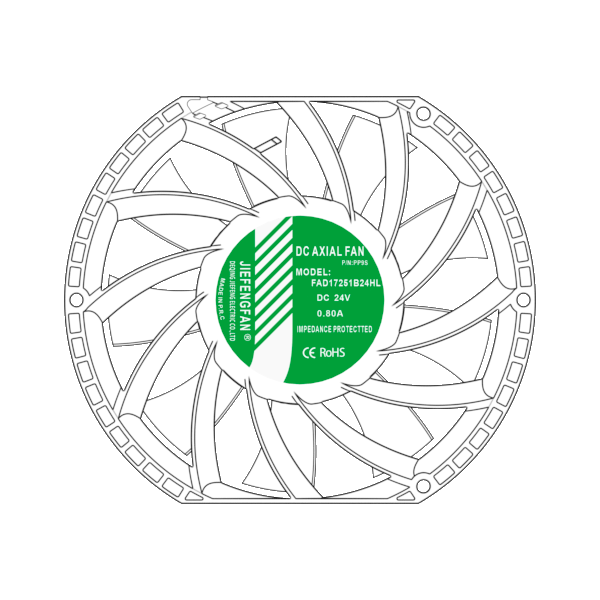

FAD17251B2HL-PP9S-C

FAD17251B2HL-PP9S-C

Product Parameters:

Brand：
JIEFENG FANS
Frame Type：
High-pressure Plastic Frame
Housing Material：
PBT+28%GF
Impeller Material：
PBT 28% Glass Fiber Reinforced
Number of Blades：
9
Overall Size：
172.5*150.0*50.5 MM
Mounting Size：
162.0*162.0 MM
Mounting Hole Diameter：
Φ4.3
Ventilation Opening Size：
φ146.0 MM
Motor Type：
Brushless Motor
Insulation Class：
B Class
Drive Type：
Ball Bearing Copper Center Tube
Power Type：
DC / Direct Current
Rated Voltage：
12V/24V/48V
Rated Power：
67.2/123.6 W
Working Temperature：
-30℃~+70℃
Working Humidity：
30%~70%RH
Speed：
4300/7300 RPM
Air Flow：
371.90/492.0 CFM
Static Pressure：
1.53/3.91 inch-H₂O
Noise Level：
67.8/72.9 dBA
Protection Grade：
IP43
Service Life：
50000 H
Weight：
600.0 g
Connection Method：
Lead-out Wire/Wiring Terminal
Safety Certification：
CE/ROHS
Custom Function：
Soft Start/Locked Rotor/RD/FG/PWM

Dimensional Drawing:

Unit: mm

Technical Specifications:

Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise
PART NO.  VDC  VDC AMP Watt RPM CFM InH2O dBA
FAD17251×1LL 12 8.5～13.5 5.60  67.20  4300  371.90  1.53  67.8
FAD17251×1ML 12 8.5～13.5 7.50  90.00  5300  397.40  1.98  69.2
FAD17251×1HL 12 8.5～13.5 8.20  98.40  6300  425.70  2.51  71.7
FAD17251×1HHL 12 8.5～13.5 10.30  123.60  7300  492.00  3.91  72.9
FAD17251×2LL 24 18～26.5 2.80  67.20  4300  371.90  1.53  67.8
FAD17251×2ML 24 18～26.5 3.75  90.00  5300  397.40  1.98  69.2
FAD17251×2HL 24 18～26.5 4.10  98.40  6300  425.70  2.51  71.7
FAD17251×2HHL 24 18～26.5 5.15  123.60  7300  492.00  3.91  72.9
FAD17251×4LL 48 36～54 1.40  67.20  4300  371.90  1.53  67.8
FAD17251×4ML 48 36～54 1.88  90.00  5300  397.40  1.98  69.2
FAD17251×4HL 48 36～54 2.05  98.40  6300  425.70  2.51  71.7
FAD17251×4HHL 48 36～54 2.58  123.60  7300  492.00  3.91  72.9
X is a variable value that represents different drive types.
