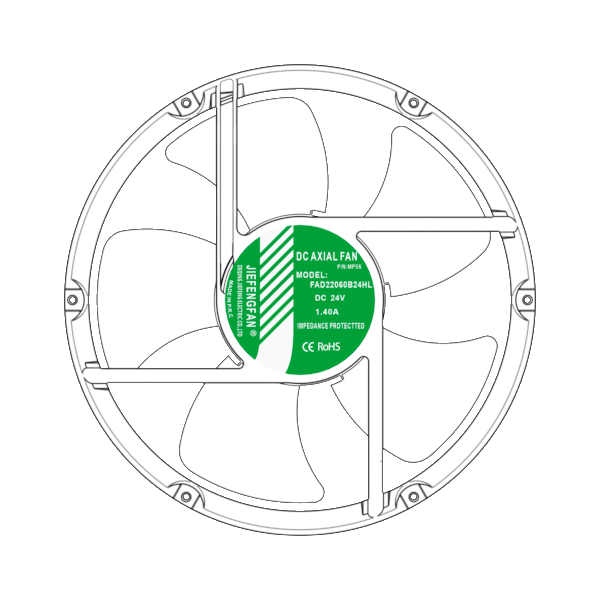

FAD22060B2HL-MP5S

FAD22060B2HL-MP5S

Product Parameters:

Brand：
JIEFENG FANS
Frame Type：
Standard Aluminum Frame
Housing Material：
ADC/12
Surface Treatment：
Powder Coating/E-Coating
Impeller Material：
PBT 28% Glass Fiber Reinforced
Number of Blades：
5
Overall Size：
φ220.0*61.4 MM
Mounting Size：
210.5*210.5 MM
Mounting Hole Diameter：
Φ4.3
Ventilation Opening Size：
φ197.0 MM
Motor Type：
Brushless Motor
Insulation Class：
B Class
Drive Type：
Ball Bearing
Power Type：
DC / Direct Current
Rated Voltage：
12V/24V/48V
Rated Power：
19.80/80.16 W
Working Temperature：
-30℃~+70℃
Working Humidity：
30%~70%RH
Speed：
2000/3500 RPM
Air Flow：
400.58/645.61 CFM
Static Pressure：
0.26/0.87 inch-H₂O
Noise Level：
68.5 dBA
Protection Grade：
IP43
Service Life：
50000 H
Weight：
840.0 g
Connection Method：
Lead-out Wire/Wiring Terminal
Safety Certification：
CE/ROHS
Custom Function：
Soft Start/Locked Rotor/RD/FG/PWM

Dimensional Drawing:

Unit: mm

Technical Specifications:

Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise
PART NO.  VDC  VDC AMP Watt RPM CFM InH2O dBA
FAD22060×1LL 12 8.5～13.5 1.65  19.80  2000  400.58  0.26  54.6
FAD22060×1LML 12 8.5～13.5 2.92  35.04  2500  513.39  0.48  60.0
FAD22060×1ML 12 8.5～13.5 4.73  56.76  3000  586.69  0.68  63.6
FAD22060×1LHL 12 8.5～13.5 7.40  88.80  3500  645.61  0.87  68.5
FAD22060×2LL 24 18～26.5 0.78  18.82  2000  400.58  0.26  54.6
FAD22060×2LML 24 18～26.5 1.39  33.36  2500  513.39  0.48  60.0
FAD22060×2ML 24 18～26.5 2.25  54.00  3000  586.69  0.68  63.6
FAD22060×2LHL 24 18～26.5 3.52  84.38  3500  645.61  0.87  68.5
FAD22060×4LL 48 36～54 0.37  17.86  2000  400.58  0.26  54.6
FAD22060×4LML 48 36～54 0.66  31.68  2500  513.39  0.48  60.0
FAD22060×4ML 48 36～54 1.07  51.36  3000  586.69  0.68  63.6
FAD22060×4LHL 48 36～54 1.67  80.16  3500  645.61  0.87  68.5
X is a variable value that represents different drive types.
