FAD22580B2HL-MP7S

FAD22580B2HL-MP7S

Product Parameters:

Brand：
JIEFENG FANS
Frame Type：
Standard Aluminum Frame
Housing Material：
ADC/12
Surface Treatment：
Powder Coating/E-Coating
Impeller Material：
PBT 28% Glass Fiber Reinforced
Number of Blades：
7
Overall Size：
225.0*225.0*80.1 MM
Mounting Size：
169.5*169.5 MM
Mounting Hole Diameter：
M5.0
Ventilation Opening Size：
φ202.0 MM
Motor Type：
Brushless Motor
Insulation Class：
B Class
Drive Type：
Ball Bearing
Power Type：
DC / Direct Current
Rated Voltage：
12V/24V/48V
Rated Power：
19.2/96.0 W
Working Temperature：
-30℃~+70℃
Working Humidity：
30%~70%RH
Speed：
2200/3200 RPM
Air Flow：
553.0/804.4 CFM
Static Pressure：
0.56/1.17 inch-H₂O
Noise Level：
71.0 dBA
Protection Grade：
IP43
Service Life：
50000 H
Weight：
1900.0 g
Connection Method：
Lead-out Wire/Wiring Terminal
Safety Certification：
CE/ROHS
Custom Function：
Soft Start/Locked Rotor/RD/FG/PWM

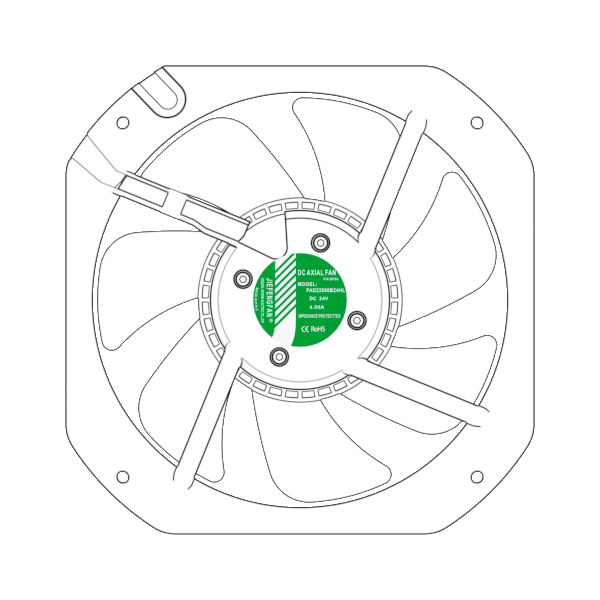

Dimensional Drawing:

Unit: mm

Technical Specifications:

Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise
PART NO.  VDC  VDC AMP Watt RPM CFM InH2O dBA
FAD22580×1HL 12 8.5～13.5 8.00  96.00  3000  754.10  1.03  69.5
FAD22580×2LL 24 18～26.5 0.80  19.20  2200  553.00  0.56  62.0
FAD22580×2ML 24 18～26.5 2.00  48.00  2700  678.70  0.84  66.9
FAD22580×2HL 24 18～26.5 4.00  96.00  3200  804.40  1.17  71.0
FAD22580×4LL 48 36～54 0.60  28.80  2200  553.00  0.56  62.0
FAD22580×4ML 48 36～54 1.00  48.00  2700  678.70  0.84  66.9
FAD22580×4HL 48 36～54 2.00  96.00  3200  804.40  1.17  71.0
X is a variable value that represents different drive types.
