FAA11025B2HL/T-MP5D

FAA11025B2HL/T-MP5D

Product Parameters:

Brand：
JIEFENG FANS
Frame Type：
Standard Aluminum Frame
Housing Material：
ADC/12
Surface Treatment：
Powder Coating
Impeller Material：
PBT 28% Glass Fiber Reinforced
Blade Quantity：
5
Overall Size：
111.3*111.3*26.3 MM
Mounting Size：
95.0*95.0 MM
Mounting Hole Diameter：
Φ4.3
Ventilation Opening Size：
ø102.5 mm
Motor Type：
Shaded Pole Motor
Insulation Class：
B Class
Drive Type：
Sleeve /Ball Bearing
Power Type：
AC / Alternating Current
Rated Voltage：
110V/220V/380V
Rated Power：
14.3/19.8 W
Working Temperature：
-30℃~+70℃
Working Humidity：
30%~70%RH
Speed：
2200/2750 RPM
Air Flow：
57/68 CFM
Air Pressure：
0.10/0.16 inch-H₂O
Noise Level：
35/41 dBA
Protection Grade：
IP43
Life Span：
30000/50000 H
Weight：
265.0 g
Connection Method：
Lead-out Wire/Terminal Tab
Safety Certification：
3C/CE/ROHS
Custom Function：
Dual Voltage

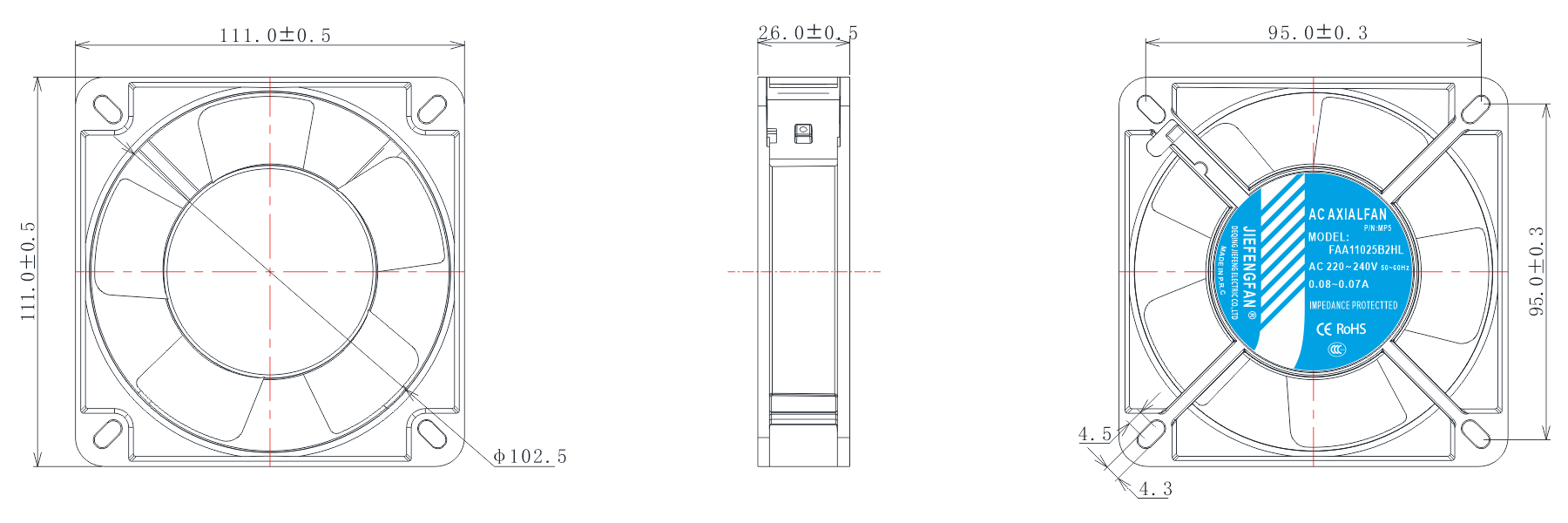

Dimensional Drawing:
Unit: mm

Technical Specifications:

Model Voltage Voltage Range Frequency Current Power Speed Airflow Static Pressure Noise
PART NO.  VAC  VAC Hz AMP Watt RPM CFM InH2O dBA
FAA11025×1HL 110 100~120 50/60 0.17/0.13 18.7/14.3 2200/2750 57/68 0.10/0.16 35/41
FAA11025×2HL 220 200~240 50/60 0.09/0.07 19.8/15.4 2200/2750 57/68 0.10/0.16 35/41
FAA11025×3HL 380 360~400 50/60 0.05/0.04 19.0/15.2 2200/2750 57/68 0.10/0.16 35/41
X is a variable value that represents different drive types.
