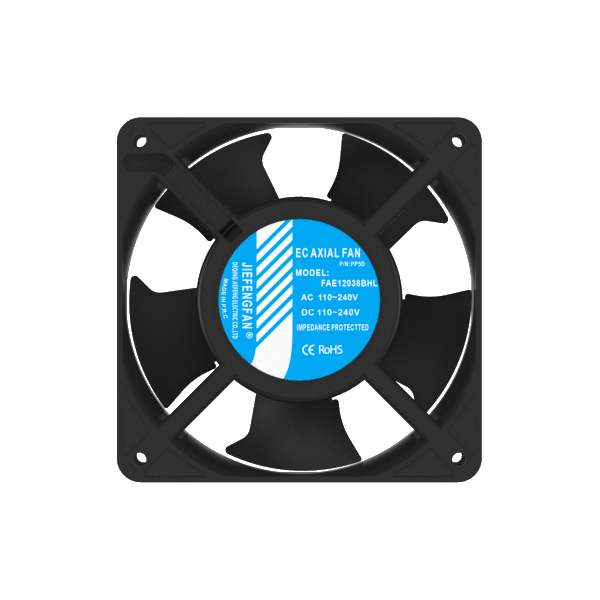

FAE12038BHL(PP5D)
Product Parameters:
- Brand：
- JIEFENG FANS
- Frame Type：
- Standard Plastic Frame
- Housing Material：
- PBT+28%GF
- Impeller Material：
- PBT 28% Glass Fiber Reinforced
- Blade Quantity：
- 5
- Overall Size：
- 120.2*120.2*38.5 MM
- Mounting Size：
- 105.0*105.0 MM
- Mounting Hole Diameter：
- Φ4.3
- Ventilation Opening Size：
- φ116.0 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- B Class
- Drive Type：
- Sleeve /Ball Bearing
- Power Type：
- EC / Electronically Commutated
- Rated Voltage：
- 85V/250V
- Rated Power：
- 2.3/6.5 W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 1500/3000 RPM
- Air Flow：
- 55.86/101.76 CFM
- Air Pressure：
- 0.03/0.31 inch-H₂O
- Noise Level：
- 44.9 dBA
- Protection Grade：
- IP43
- Life Span：
- 30000/50000 H
- Weight：
- 230.0 g
- Connection Method：
- Lead-out Wire/Wiring Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- Soft Start/Locked Rotor/RD/FG/PWM

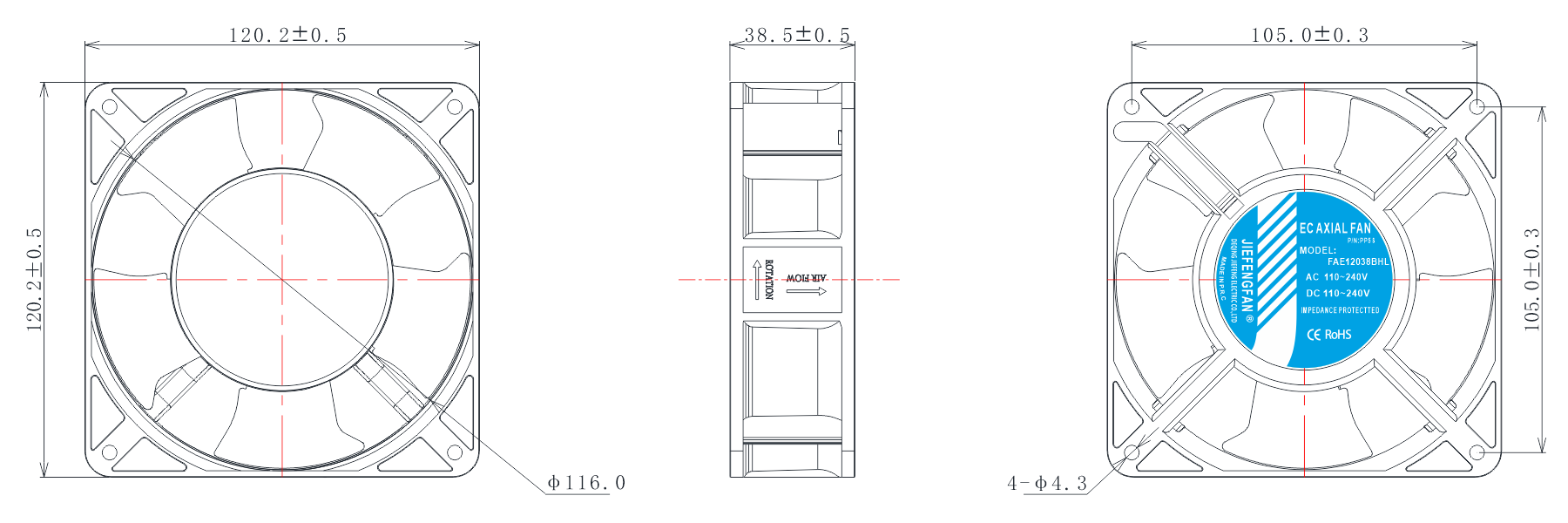

Dimensional Drawing:
Unit: mm
Technical Specifications:
| Model | Voltage | Operating Voltage Range | Power | Speed | Airflow | Pressure | Noise |
| PART NO. | VAC/DC | VAC/DC | Watt | RPM | CFM | InH2O | dBA |
| FAE12038×LL | 110~220 | 85～260 | 4.50 | 1500 | 55.86 | 0.03 | 30.60 |
| FAE12038×ML | 110~220 | 85～260 | 7.00 | 2000 | 72.34 | 0.12 | 35.70 |
| FAE12038×HL | 110~220 | 85～260 | 9.50 | 2500 | 88.95 | 0.22 | 40.20 |
| FAE12038×HHL | 110~220 | 85～260 | 12.60 | 3000 | 101.76 | 0.31 | 44.90 |
| X is a variable value that represents different drive types. | |||||||
