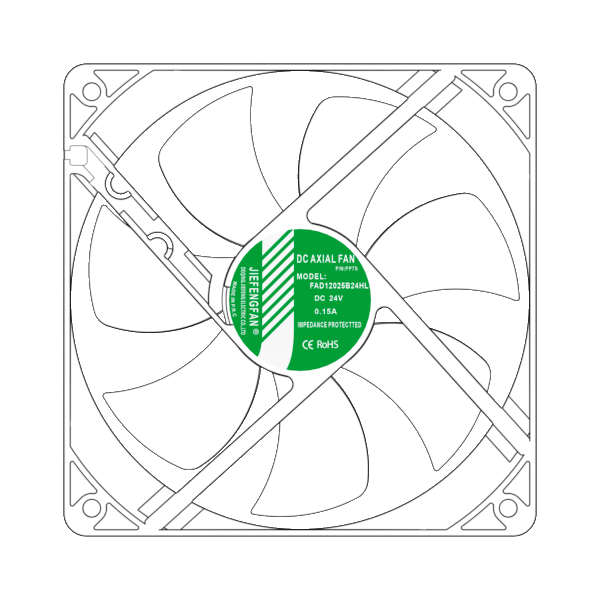

FAD12025B2HL-PP7S-A
FAD12025B2HL-PP7S-A DC Axial Fan industrial cooling fan for electrical cabinets, automation equipment, power supplies, servers, ventilation and thermal management applic…
Reliable Thermal Management Technology
Dimensional Drawing: Unit: mm Technical Specifications: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART NO. VDC VDC AMP Watt RPM CFM InH2O dBA FAD12025×1LL 12 8.5～13.5 0.18 2.16 1500 64.20 0.07 30.5 FAD12025×1LML 12 8.5～13.5 0.25 3.00 2000 76.60 0.10 36.5 FAD12025×1ML 12 8.5～13.5 0.31 3.72 2500 92.40 0.16 42.1 FAD12025×1LHL 12 8.5～13.5 0.45 5.40 3000 107.10 0.20 47.4 FAD12025×2LL 24 18～26.5 0.09 2.16 1500 64.20 0.07 30.5 FAD12025×2LML 24 18～26.5 0.13 3.00 2000 76.60 0.10 36.5 FAD12025×2ML 24 18～26.5 0.16 3.72 2500 92.40 0.16 42.1 FAD12025×2LHL 24 18～26.5 0.23 5.40 3000 107.10 0.20 47.4 FAD12025×4LL 48 36～54 0.05 2.16 1500 64.20 0.07 30.5 FAD12025×4LML 48 36～54 0.06 3.00 2000 76.60 0.10 36.5 FAD12025×4ML 48 36～54 0.08 3.72 2500 92.40 0.16 42.1 FAD12025×4LHL 48 36～54 0.11 5.40 3000 107.10 0.20 47.4 X is a variable value that represents different drive types.
Product Parameters
- Product Type
- Axial Fan
- Brand
- JIEFENG FANS
- Frame Type
- Standard Plastic Frame
- Housing Material
- PBT+28%GF
- Impeller Material
- PBT 28% Glass Fiber Reinforced
- Blade Quantity
- 7
- Overall Size
- 120.0*120.0*25.1 MM
- Mounting Size
- 105.0*105.0 MM
- Mounting Hole Diameter
- Φ4.3
- Ventilation Opening Size
- φ117.0 MM
- Motor Type
- Brushless Motor
- Insulation Class
- B Class
- Drive Type
- Sleeve /Ball Bearing
- Power Type
- DC / Direct Current
- Rated Voltage
- 12V/24V/48V
- Rated Power
- 2.16/5.4 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 1500/3000 RPM
- Air Flow
- 64.2/107.1 CFM
- Air Pressure
- 0.07/0.20 inch-H₂O
- Noise Level
- 47.4 dBA
- Protection Grade
- IP43
- Life Span
- 30000/50000 H
- Weight
- 122.0 g
- Connection Method
- Lead-out Wire/Wiring Terminal
- Safety Certification
- CE/ROHS
- Custom Function
- Soft Start/Locked Rotor/RD/FG/PWM
